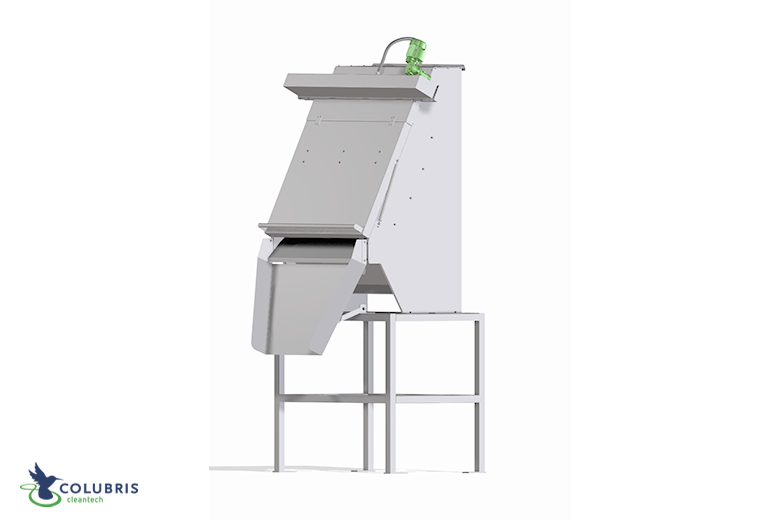

Vibrating curved screen

Removes particles that could damage or block downstream equipment.

Do you want to know more about our vibrating curved screen ?

Send us a few words about your project, and we will contact you.

Request for information

Technical details of a vibrating curved screen

Relatively dry screenings

Screenings spend a long time on the relatively flat bottom part of the screen plate, allowing moisture to seep from the screenings.

Less sensitive for blockage

Wedge is widest on the inside, so slots block more difficult.

Effective mesh

Mesh is smaller than actual slot width due to curvature of the curved screen combined with the momentum of the coarse solids.

Hygienic

The screening is guided by a chute during the fall into the deposit.

Low energy consumption

Vibrating action provided by 2 pneumatic driven motors.

Automatic spray cleaning system

Cleans large surface area. The spray arm is equipped with multiple high-pressure spray nozzles which is reliable and safe.

Support structure

Creates enough height to place a container below the screen.

Improved hygiene & prevents nuisance

By adding a hinged cover it opens effortlessly as it includes a gas cylinder assisted swing-up opening.
