All our conveyor belts are designed in a similar way. Where needed an impact section is implemented to reduce forces and increase the life expectancy. The rubber is carefully chosen, based on life expectancy, ability to vulcanize for creating a seamless belt, wear resistance, ultra violet (UV) resistance.
Send us a few words about your project, and we will contact you.
The belt consists of multiple layers and several different materials are used for optimal performance.

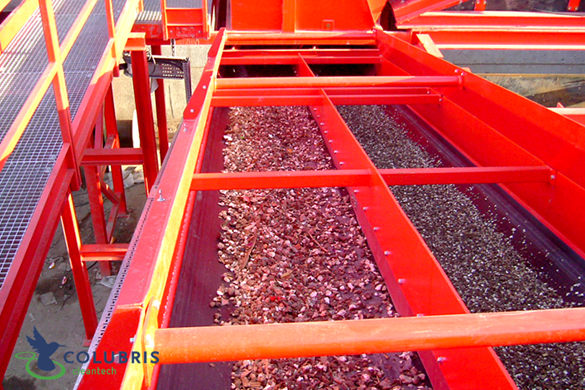

The rubber belt conveyor consists of a stable open frame construction of profiled steel and sheet metal work, a drive and tensioning part. The conveyor belt has a design that ensures the highest reliability, limits pollution of the belt and its surroundings, and minimal maintenance requirements.
The drive pulley and the tensioning pulley are both a welded steel drum and are curved and finished with a diamond profile cladding.
The return rollers are equipped with distance rings. Return rollers within reach are protected with a special safety construction to prevent access to this area. The safety construction is easy to remove for maintenance purposes.
A scraper ensures that the belt is constantly cleaned from contamination to prevent
misalignment and damage of the belt. The scraper at the front end is made of a hard metal
plate and is equipped with automatic spring tensioning. The second scraper is a V-scraper
positioned at the inside of the conveyor belt.
