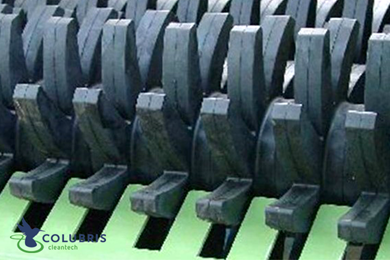

Flower-disk screen

The Colubris disk screen ‘works’ the incoming material, thus securing a high capacity without the risk of getting blocked.

Do you want to know more about our flower-disk screen?

Send us a few words about your project, and we will contact you.

Request for information

Technical details of the flower disk-screen

  • The Colubris screen deck is divided into several sections which contain a number of shafts. Each section is driven by a gear motor via a chain; the sprockets are equipped with a slip coupling to protect the drives from possible over torque.
  • For cleaning, inspection and maintenance purposes the machine is equipped with a door.
  • The shafts can be exchanged without the need to disconnect the bearings.
  • Resilient discs prevent blocking and damage significantly. Because the discs have a large diameter there is minimal chance to windings around shaft sleeves.
  • A crane track is used for maintenance, including trolley, excluding hoist, max lift weight is 500 kg.

Do you want to know more about our flower-disk screen?

Send us a few words about your project, and we will contact you.

Contact us
Related products
Cascade screen
Cascade screen

The screen deck is composed of screen sections in cascade position. By means of this cascade construction the material is tossed and turned from section to section to ensure the optimal sieving effect.

Trommel screen
Trommel screen

Mechanical sizing of waste flows can be executed with various screens.
